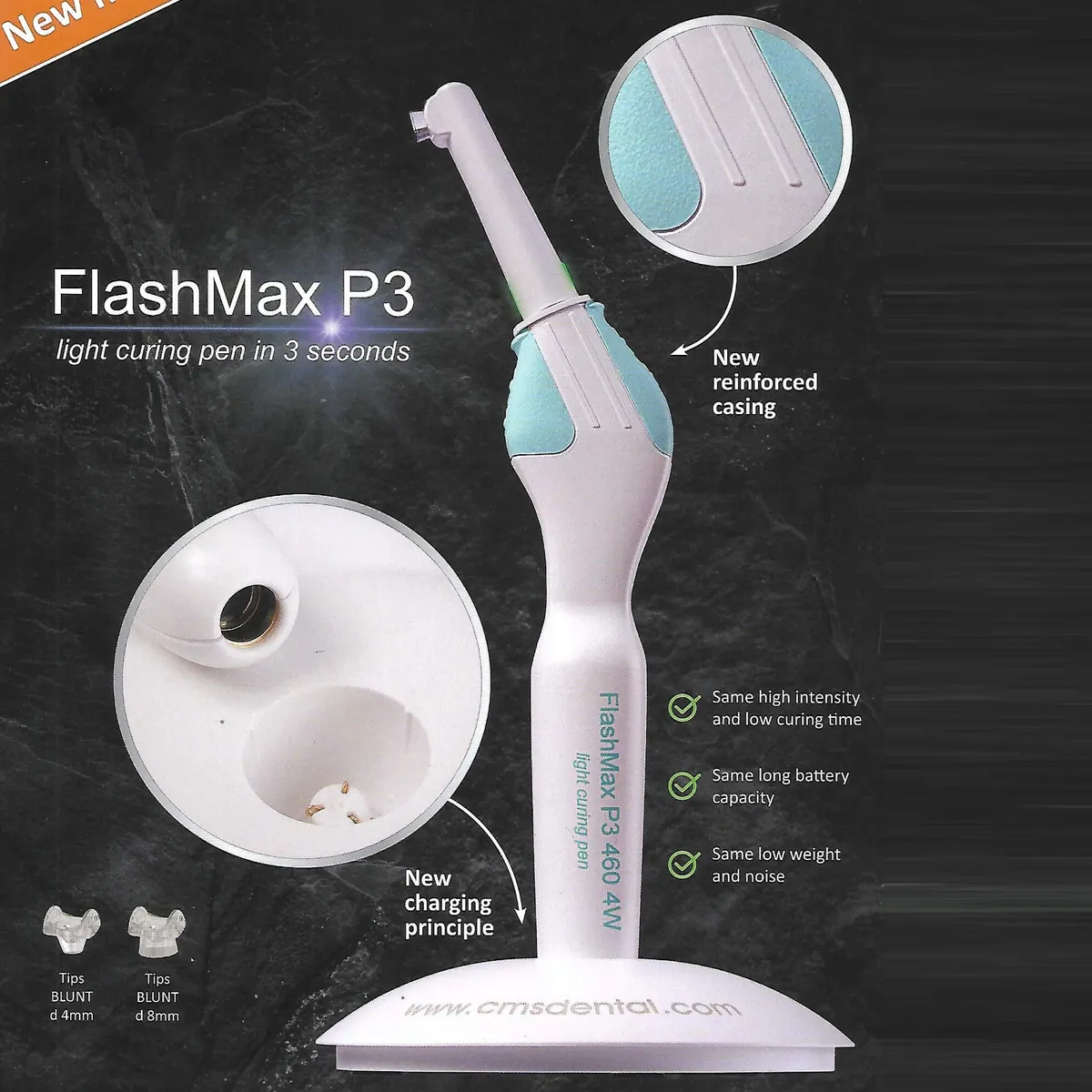

Dental Curing Light FlashMax P3 460, 4W

Clinical Overview

The FlashMax P3 460 is a high-performance cordless dental curing light with a broad-spectrum LED (440–480 nm, peak 460 nm) delivering ultra‑high irradiance of 5,000–6,000 mW/cm². Designed for rapid polymerization of camphorquinone‑based composites—including bulk restoratives and orthodontic adhesives—it enables full curing of 2–3 mm layers in as little as 1–3 seconds, significantly increasing clinical efficiency.

Key Benefits

• Ultra‑high output: 5,000–6,000 mW/cm² ensures rapid curing of restorations and brackets in 1–3 s.

• Peak wavelength 460 nm: optimized for camphorquinone initiators.

• Ergonomic pen grip: lightweight (~120 g) and ambidextrous with bilateral controls, reducing operator fatigue.

• Adjustable tips: 4 mm and 8 mm blunt caps with ±15° swivel for improved access.

• Long battery life: LiFePO₄ battery provides ~500 s curing time per 2‑h charge; auto‑sleep conserves power.

• Intelligent settings: Modes for standard, extended buildup, and orthodontic—1 s or 3 s cure intervals for layer optimization.

Kit Contents

• 1 × FlashMax P3 cordless curing handpiece

• 1 × Charging dock (100–240 VAC) with power supply

• 4 mm & 8 mm disposable blunt tips

• 10 × disposable protective covers; 10 × barrier sleeves

• 1 × orange protective shield

• 1 × User manual

Technical Specifications

• Wavelength: 440–480 nm (peak 460 nm); 85% within 450–470 nm

• Intensity: 5,000–6,000 mW/cm² (typical) or 4,000 mW/cm² per ISO

• Cure modes: 1 s and 3 s presets; orthodontic and buildup settings

• Battery: LiFePO₄ 3.2 V, 1,200 mAh; ~2 h to charge; ~500 s runtime (≈166 3‑s cures)

• Weight: ≈120 g

• Certifications: CE‑marked, IEC class II, LED class 2

• Warranty: 2 years

Indications

• Curing light-activated composite restorations (standard & bulk-fill)

• Adhesive bonding of orthodontic brackets and appliances

• Cementation of veneers, posts, and inlays/onlays

• Layered buildup and extended polymerization protocols

Instructions for Use

1. Fully charge light in dock (~2 h).

2. Attach desired tip; apply barrier sleeve and eye-shield.

3. Select mode: Standard (1 s small, 3 s large button), Buildup, or Ortho.

4. Position tip ≤1 mm from material; press appropriate button.

5. Watch for audible tone and cool-down indicator.

6. After procedure, dock or allow auto‑sleep after ~15 s inactivity.

7. Replace tips and sleeves between patients; clean external surfaces.

Summary

The FlashMax P3 460 offers class‑leading irradiance, rapid cure times, and a compact ergonomic design—ideal for practices seeking efficiency and performance. Its versatile modes and long-lasting battery make it suitable for all restorative and orthodontic needs.
