NANO LED Dental Curing Light

Clinical Overview

The NANO 3-in-1 LED Curing Light is a compact, high-performance tool designed for today’s advanced dental practices. It integrates three key functions—light curing, caries detection, and light metering—into one versatile device. Featuring a wide-spectrum output (380–520 nm), 360° rotatable head, and precision LED metering, it offers reliable curing results and clinical accuracy for superior patient outcomes.

Key Benefits

• 3-in-1 functionality: Combines curing light, caries detection, and built-in light metering in one compact tool.
• Wide-spectrum LED: Covers 380–520 nm, compatible with a wide range of composites and adhesives.
• Fast curing performance: Delivers high light power of 1100 mW/cm² with 8 mm curing depth per second.
• Dual-mode operation: Curing (10s/20s) and detection (30s/60s) modes controlled by intuitive single or double-press system.
• Visual caries feedback: Green light indicates healthy dentin; red light flags bacterial activity.
• 360° rotatable metal head: Ensures easy intraoral access in all quadrants.
• Rugged construction: Full-metal body offers durability, stability, and clinical longevity.
• Extended operation: Dual battery system supports up to 200 uses per charge.

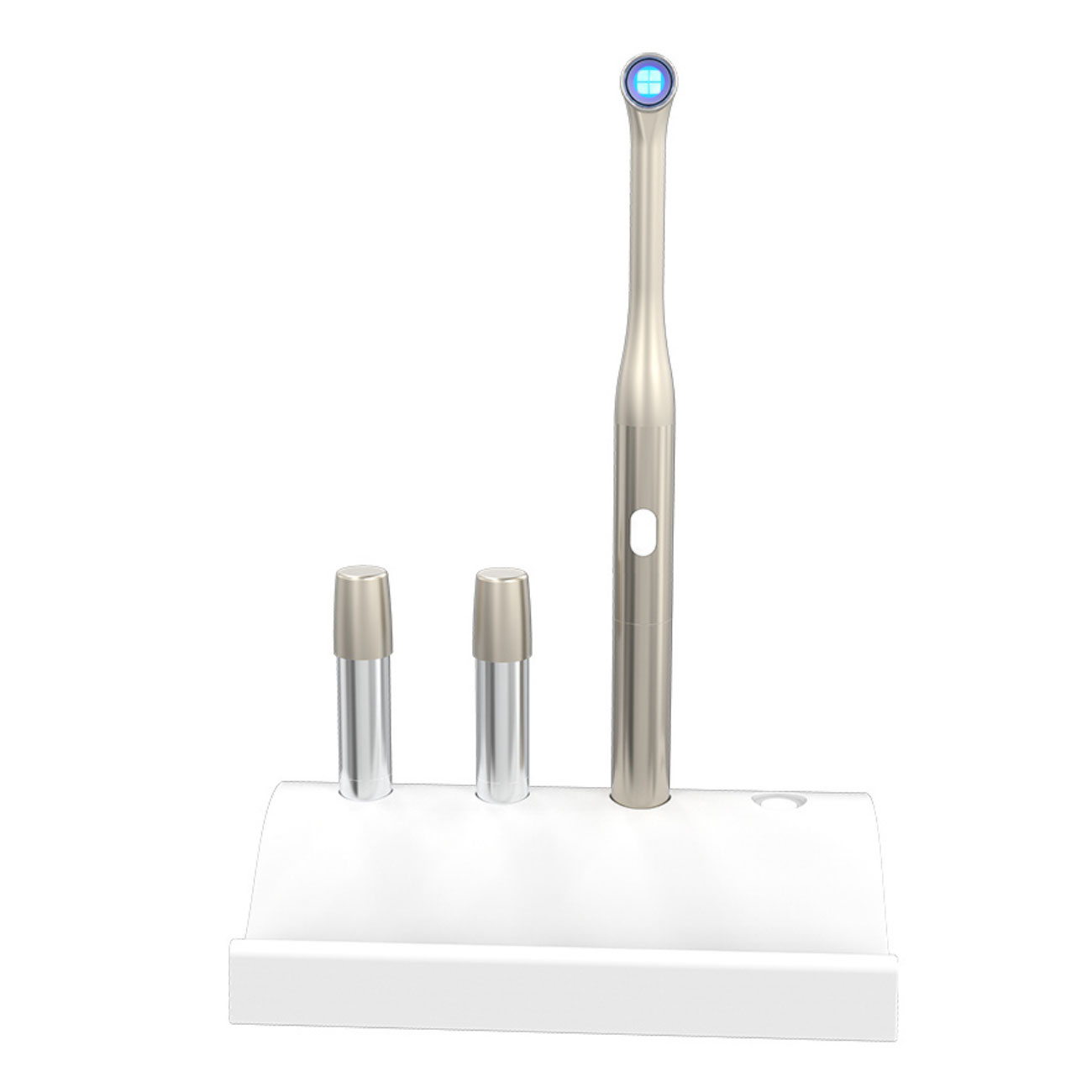

Kit Contents

• 1 × NANO 3-in-1 LED curing light handpiece
• 2 × Standard rechargeable batteries
• 1 × Battery charging dock
• 1 × Light-shielding sleeve
• 1 × Instruction manual
• 1 × Storage case

Technical Specifications

• Wavelength: 380–520 nm (broad spectrum LED)
• Light output: 1100 mW/cm²
• Curing depth: Up to 8 mm/second
• Effective range: 10 mm
• Curing mode: One press (10 s), double press (20 s)
• Detection mode: One press (30 s), double press (60 s)
• Metering system: Integrated high-sensitivity LED meter
• Battery life: 105–200 uses per full charge
• Head design: 360° rotatable for ergonomic access
• Body construction: Full-metal, compact (13.5 mm diameter)

Indications

• Polymerization of light-cured dental materials (composites, adhesives, sealants)
• Visual detection of carious lesions via fluorescence
• Measurement of light intensity for quality assurance

Instructions for Use

1. Insert a fully charged battery into the handpiece.
2. Attach light shield and ensure lens is clean.
3. Select desired mode (curing or detection) using control button:
• Single press = 10 s (curing) or 30 s (detection)
• Double press = 20 s (curing) or 60 s (detection)
4. Position the head close to the treatment area.
5. Begin cycle and monitor LED indicators for feedback.
6. Recharge battery after use; alternate with second included battery.

Summary

The NANO 3-in-1 LED Dental Curing Light streamlines clinical workflows by integrating curing, detection, and metering into a single, ergonomic device. With its wide-spectrum output, visual caries identification, and precision engineering, it delivers efficient and reliable performance—making it an ideal choice for modern restorative and diagnostic dentistry.
