I LED Plus, Cordless Light Curing, 1 Second Curing Time
Clinical Overview

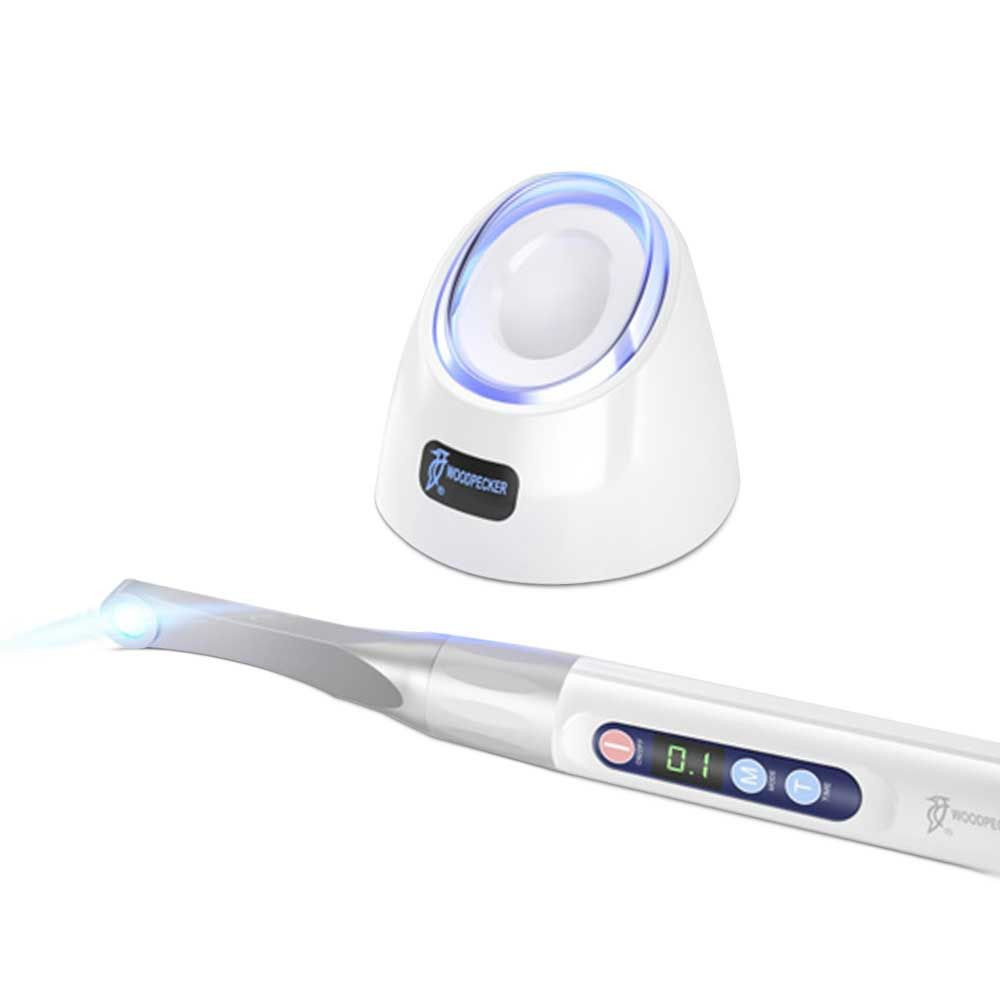

The Woodpecker iLED Plus is a high-intensity, wide‑spectrum cordless curing light engineered for ultra‑rapid polymerization of 2 mm resin layers in just 1 second. It features a 360° rotatable metal head and focused beam to improve ergonomic access and energy delivery efficiency in restorative, orthodontic, veneer, and post-core procedures.
Key Benefits
- Turbomode 1 s cure: achieves complete 2 mm resin polymerization in one second at ~2,300–2,500 mW/cm².
- Wide-spectrum LED (385–515 nm): supports both traditional camphorquinone and newer photoinitiators like TPO, reducing risk of under-curing.
- Focused optics: reduces beam angle by ~55.9% for deeper, more efficient curing.
- Ergonomic design: slim (25×25×240 mm), 278 g lightweight body with fluid design for comfortable one-hand use.
- 360° rotatable metal head: enables access to posterior and anterior regions efficiently.
Kit Contents
- 1 × iLED Plus curing handpiece
- 1 × charging base + power adapter
- 100 × disposable barrier sleeves
- 1 × protective light shield
- 1 × user manual + warranty card
Technical Specifications
- Wavelength: 385–515 nm (broad spectrum for CQ and TPO initiators)
- Light output: Normal mode 1,000–1,200 mW/cm²; Turbo 2,300–2,500 mW/cm²
- Modes & timing:
- Turbo (P1): 1 s or 3 s cure.
- Normal (P2): 5, 10, 15 or 20 s cure.
- Battery: 3.7 V / 1,400 mAh rechargeable lithium battery; ~400 × 10 s cures per charge
- Dimensions & weight: 25 × 25 × 240 mm; 278 g
- Power input: 100–240 V AC charger, auto shut‑off after 2 min idle
- Certifications: FDA and CE certified, 1‑year warranty
Indications
- Curing standard and bulk-fill composite restorations
- Bonding orthodontic brackets, veneers, posts, inlays/onlays
- Post-core cementation
- Adhesive resin cement protocols
Instructions for Use
- Fully charge unit (≈2 h) before first use.
- Place barrier sleeve and protective shield on head.
- Press Mode to select Turbo (P1) or Normal (P2).
- Press Time to choose cure duration: P1 = 1 or 3 s; P2 = 5/10/15/20 s.
- Position tip ≤1 mm from material surface and press button; countdown tones every second.
- During operation, avoid repeated cycles >10 times without cooling.
- Post-use: remove sleeve, dock unit to auto-charge and standby.
- If display flashes, recharge battery promptly.
Summary
The Woodpecker iLED Plus combines lightning-fast curing, wide-spectrum compatibility, and focused beam design in a lightweight ergonomic body—ideal for high-efficiency restorative and orthodontic workflows.
