LED-H, Light Curing Unit, Wireless
Clinical Overview

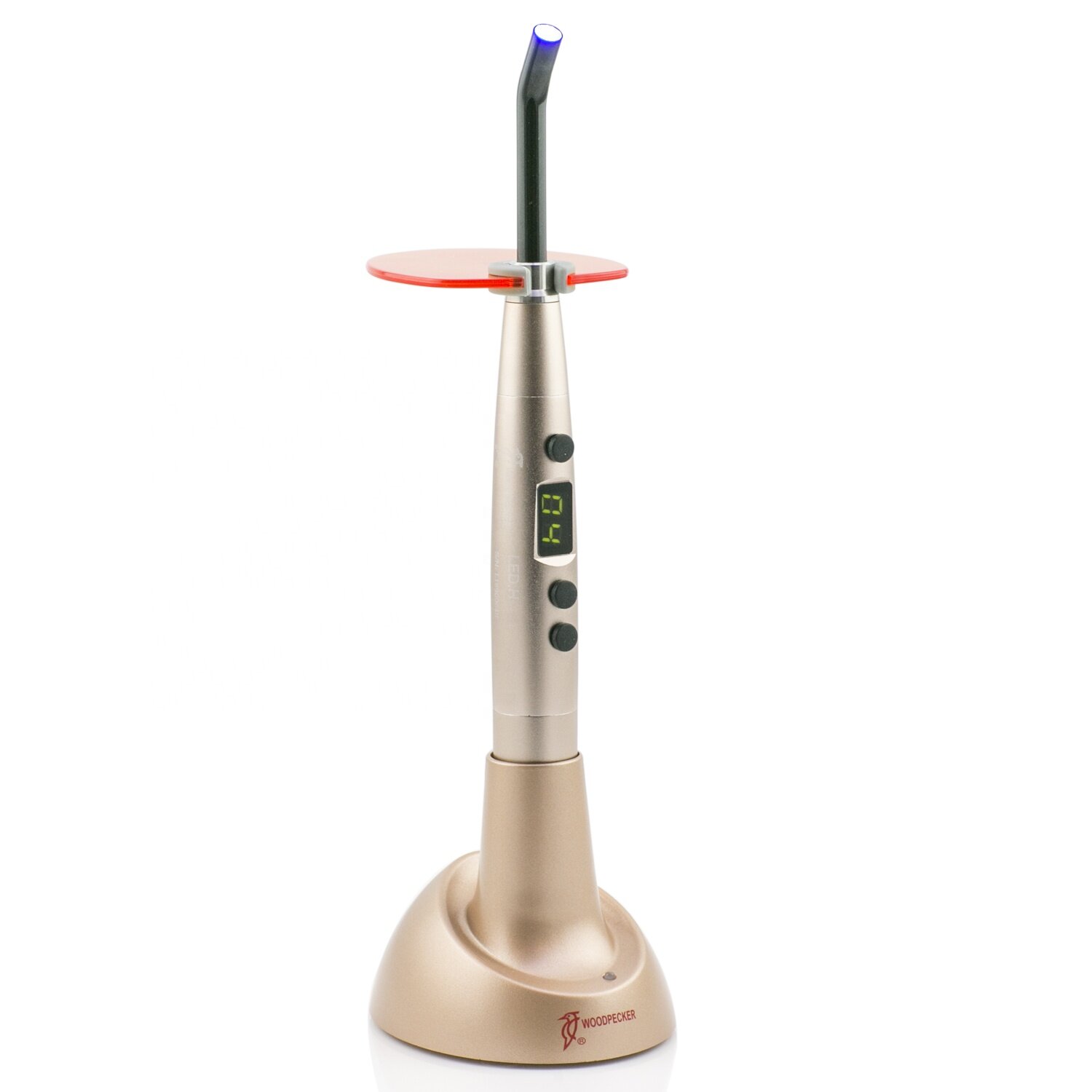

The Woodpecker LED‑H is a cordless, high‑intensity LED curing light featuring a full-metal shell and beveled, 360°-rotatable fiber optic tip. Capable of delivering consistent, orthodontic-grade light output, it cures brackets or resin in just 3 seconds and maintains intensity across power levels and angles.
Key Benefits
- Fast‑track curing: Orthodontic mode at 1,600–1,800 mW/cm² delivers full cure in only 3 seconds.
- Dual power modes: Standard mode (1,000–1,200 mW/cm², 5–20 s) plus orthodontic mode (1,600–1,800 mW/cm², 3–10 s).
- Consistent intensity: Intelligent cooling and full-metal housing prevent overheating and maintain constant output.
- 360° rotatable beveled tip: Ideal for posterior teeth or tight spaces—40% better intensity at angles.
- Battery & safety features: Replaceable 3.7 V/2,200 mAh ICR18650 battery, low-power detection, auto-shutoff after 2 min idle.
- Sterilizable fiber: Fiber optic tip autoclaves up to 134 °C for infection control.
Kit Contents
- 1 × LED‑H cordless handpiece
- 2 × autoclavable fiber-optic tips (standard + beveled)
- 1 × charging dock + AC adapter (100–240 V)
- 1 × protective light shield
- 1 × rechargeable ICR18650 battery
- 1 × user manual
Technical Specifications
- Wavelength: 385–515 nm blue LED
- Output intensity: Standard: 1,000–1,200 mW/cm²; Ortho: 1,600–1,800 mW/cm²
- Power modes: Full power, ramp, pulse; nine time settings up to 40 s
- Battery: Li-ion 3.7 V/2,200 mAh; ~500 10 s cycles per charge; low-battery detection
- Dimensions/weight: Ø 25 mm × 252 mm; ~178 g
- Power input: ≤ 8 W; adapter 5 V/1 A
- Auto shut-off: After ~2 min of inactivity
- Sterilization: Fiber tip can be autoclaved at 134 °C/2.0 bar up to 500 cycles
Working & Setting Times
- Ortho mode: 3, 5, 10 s at 1,600–1,800 mW/cm².
- Standard mode: 5, 10, 15, 20 s at 1,000–1,200 mW/cm².
- Extended time: Up to 40 s available in ramp/pulse modes.
Indications
- Bracket bonding and orthodontic resin polymerization
- Composite restorations and adhesive bonding
- Veneer, inlay/onlay, and post-core cementation
- Use in angled or posterior access situations
Instructions for Use
- Charge fully; install battery and fiber tip; attach shield.
- Select mode (Ortho/Standard) via button.
- Choose exposure time.
- Position tip ≤1 mm from resin; press to start timing.
- Observe automatic cut-off and idle shut-off.
- Remove shield; autoclave fiber tip; recharge as needed.
Summary
The Woodpecker LED‑H balances rapid orthodontic curing and general-purpose dental use in a robust, ergonomic design. With dual modes, 360° tip, consistent output, and reliable battery operations, it enhances efficiency across restorative and orthodontic workflows.
