Clinical Overview
The SmartLite Pro is a modular, cordless LED curing device with pen-style ergonomics and superior optics. It delivers homogenous 1,250 mW/cm² irradiance across a full 10 mm beam, ensuring dependable polymerization even at distance—ideal for composites, sealants, cements, and transillumination diagnostics.
Key Benefits
- Uniform 10 mm beam: covers larger restorations with consistent cure across field.
- Modular tips: quick-connect cure, PolyCure, and transillumination tips rotate 360° for versatile procedures.
- Built-in radiometer: charging base monitors output to maintain ≥1,000 mW/cm² performance.
- LCD battery management: dual LiFePO₄ batteries provide full-day cordless operation with rapid swap capability.
- Metal housing: stainless steel and anodized aluminum ensure durability and easy sterilization.
- Single-button simplicity: one-touch operation with audible and tactile confirmation.

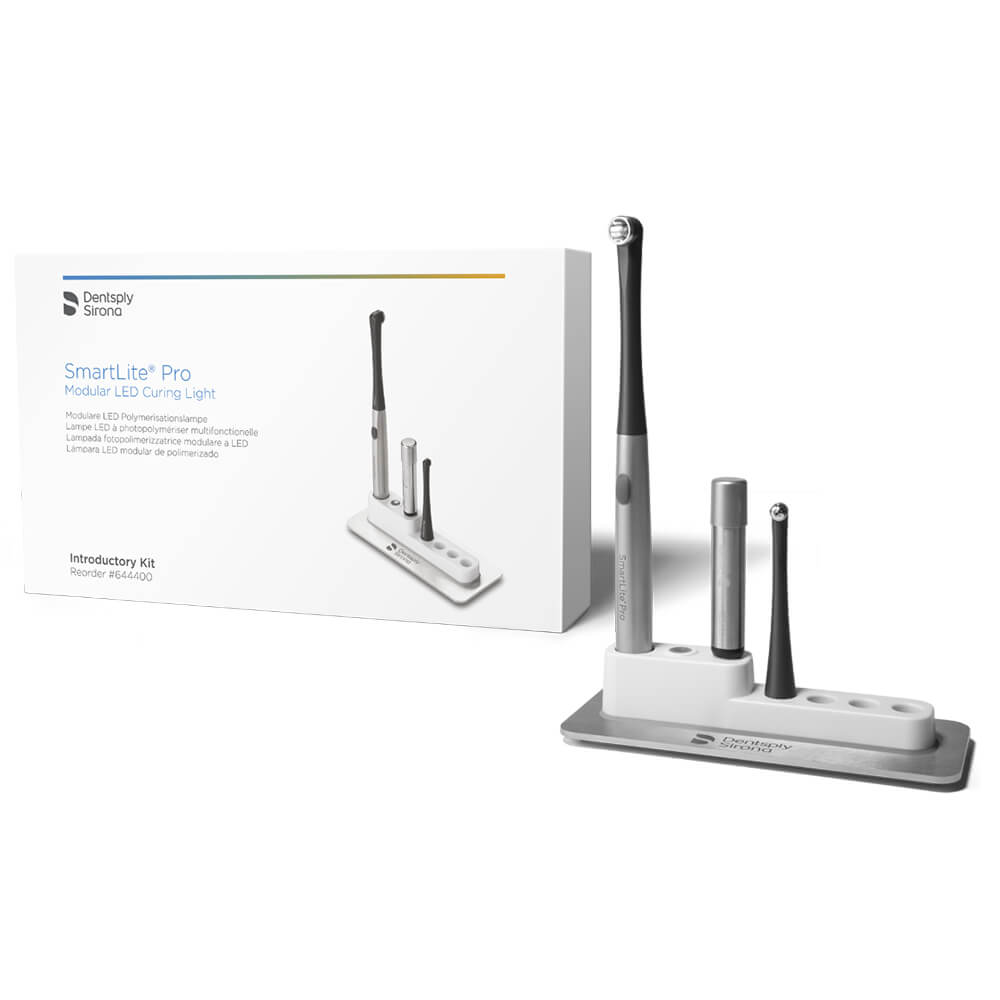

Kit Contents
- 1 × SmartLite Pro handpiece
- 1 × cure tip + 1 × transillumination tip
- 2 × LiFePO₄ batteries
- 1 × charging base with integrated radiometer
- 3 × eye-protective shields + 100 sleeves
- 1 × USB power adapter with global plugs
- 1 × i‑Cure tool & technique guide
Technical Specifications
- Irradiance: ~1,250 mW/cm² across 10 mm active diameter
- Wavelength: blue LED range—405–480 nm (Cure & PolyCure tips).
- Tips: quick-connect cure/PolyCure/transillumination, 360° rotation, 1 mm focused transillumination
- Power: dual LiFePO₄ batteries; charging dock with radiometer; LED indicates ≥1,000 mW/cm²
- Housing: stainless steel/anodized aluminum, balanced pen-style design.
- Operation: single-button with audible/tactile cues; ≤10 s standard cure cycles
- Warranty: 2 years on handpiece/base/tips; 1 year on batteries
Indications
- Light-curing of composites, adhesives, sealants, and resin cements
- Transillumination for caries detection, crack visualization, and endodontic access
- Use with both CQ-initiated and violet-sensitive materials (via PolyCure tip)
Instructions for Use
- Insert charged battery and attach desired tip.
- Place a barrier sleeve and eye shield over tip.
- Press button once to start up; single press to initiate cure
