Clinical Overview

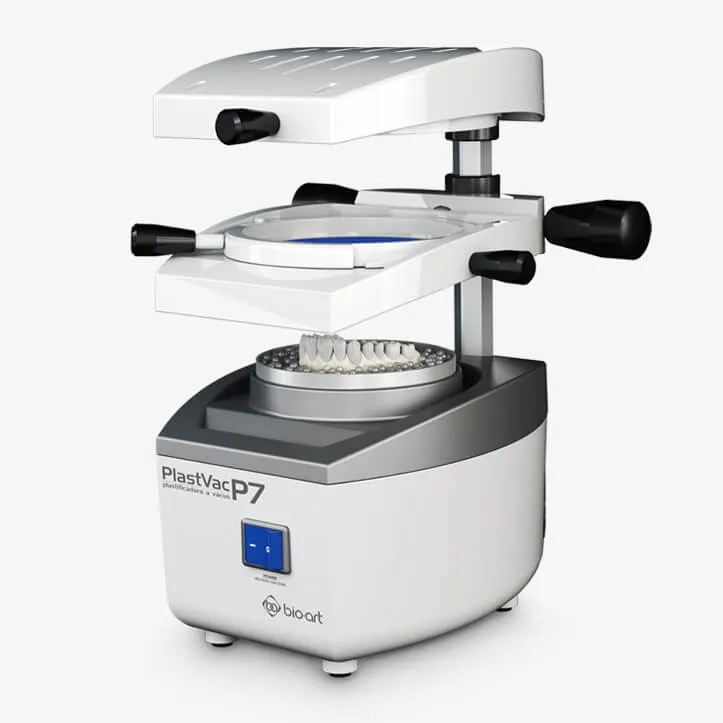

The PlastVac P7‑Plus is a compact, digital vacuum-forming device featuring dual-sided heating and programmable timing. Powered by a 1400 W motor and carbon-fiber heating element, it enables consistent production of thermoplastic appliances—such as mouthguards, bleaching trays, surgical guides, and orthodontic retainers—in a single clinical session with minimal setup.
Key Benefits
- Rotating dual-heating frame: uniformly heats both sides of the sheet for even forming, especially with up to 6 mm thick materials.
- Digital timer with audible alert: ensures precise and repeatable heating based on sheet type and thickness.
- Powerful vacuum motor: 1400 W vacuum engages automatically at the optimal moment for effective adaptation.
- Universal tray support: accommodates both round (Ø120–134 mm) and square (120–130 mm) sheets.
- No special installation needed: plug-and-play setup compatible with standard lab/clinic power lines.
- Fast ROI: typical cost recovery after forming ~30 appliances.
Kit Contents
- 1 × PlastVac P7‑Plus vacuum former unit (220 V)
- 1 × Heating frame and rotating base handle
- 1 × Power cable
- Accessories: glass beads (250 g), hex wrench, double‑sided tray support, user manual
Technical Specifications
- Voltage: 220 V (also available in 110 V version, not bivolt)
- Motor power: 1400 W vacuum + 450 W heating element
- Maximum sheet thickness: up to 6 mm
- Sheet size: round Ø120–134 mm; square 120×120 to 130×130 mm
- Weight & dimensions: approx. 5.4 kg; 24×27×19 cm footprint
- Construction: aluminum chassis, carbon-fiber heater, automatic vacuum activation
Indications
- Mouthguards, bruxism splints, bleaching trays
- Surgical guide and provisional guard fabrication
- Composite resin matrices, bracket positioning trays
- Study model packaging and orthodontic appliance trays
Instructions for Use
- Place sheet in frame; adjust clamp and lift heating unit.
- Set heating time on timer based on material; press start.
- Once heated, rotate frame under vacuum motor—automatic vacuum engages.
- Allow material to cool, then release and remove formed appliance.
- Clean tray support and flush vacuum pathways between sessions.
Summary
The PlastVac P7‑Plus combines efficient, uniform heating with digital control and powerful vacuum performance in a streamlined package. It enables reliable, same-session production of dental appliances with minimal setup—ideal for clinics and labs seeking consistent, chairside thermoforming capability.
