Clinical Overview

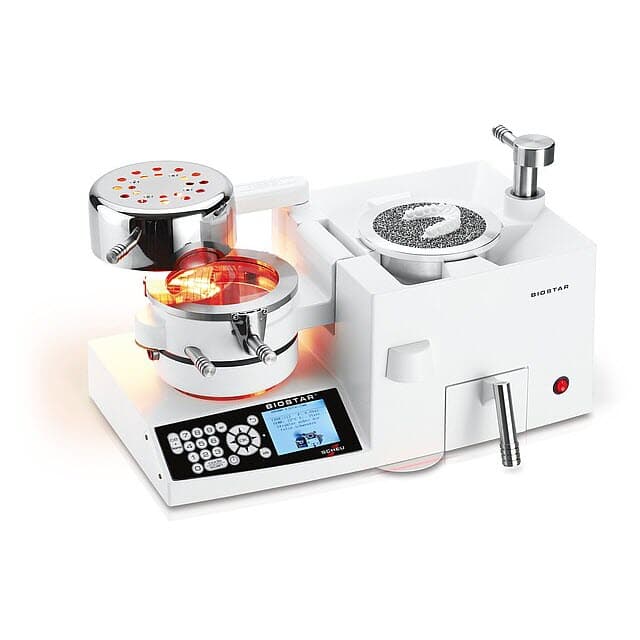

The BIOSTAR® 3001 is a premium pressure-forming system for dental and orthodontic applications, including thermoforming splints, trays, retainers, mouthguards, and temporaries. It combines high precision thermo-pressure molding with infrared heating and barcode-guided programming for consistent, repeatable results.
Key Benefits
- Rapid infrared heating: reaches working temperature within one second for efficient cycle times
- Pressure up to 6 bar: robust polymer deformation ensures precise adaptation on models
- Barcode / scan technology: auto-loads material-specific parameters, reducing operator error
- 3.2″ color LCD with guidance: displays steps, animated instructions, and acoustic/visual cues
- USB software updates: ensures device remains compatible with new materials
- Large model cup & pellet container: supports mounted models and clean granulate handling
- Reliable support: 3-year warranty and 10-year spare parts protocol
Specifications
- Power: 230 / 115 / 100 V, 750 W
- Pressure range: 0.5–6.0 bar (adjustable)
- Infrared heater: thermostatically controlled, heats in ~1 sec
- Display: 3.2″ color LCD (320 × 240 px)
- Dimensions: 520 × 440 × 240 mm
- Weight: ~14 kg
Indications
- Thermoforming of splints (occlusal, orthodontic, bleaching, sports)
- Fabrication of mouthguards, retainers, and positioners
- Production of trays—custom, impression, implant surgical templates
- Temporary denture bases and provisional appliances
- Orthodontic and occlusal device manufacturing
Instructions for Use
- Load material blank; optionally scan its barcode or enter code manually.
- Swivel infrared heater into position; thermostat-controlled heat activates within 1 sec.
- Once ready, lower pressure chamber and activate up to 6 bar.
- Allow cooling phase; heater swivels away automatically.
- Release chamber using "AIR" key, then remove the formed appliance.
- Clean and finish appliance, then prepare for clinical use.
Summary
The Scheu BIOSTAR 3001 offers lab-grade, reproducible thermoforming with intelligent automation—fast infrared heating, high-pressure control, barcode-guided parametrization, and intuitive UI make it a reliable workhorse for dental practices and labs seeking quality and efficiency.
