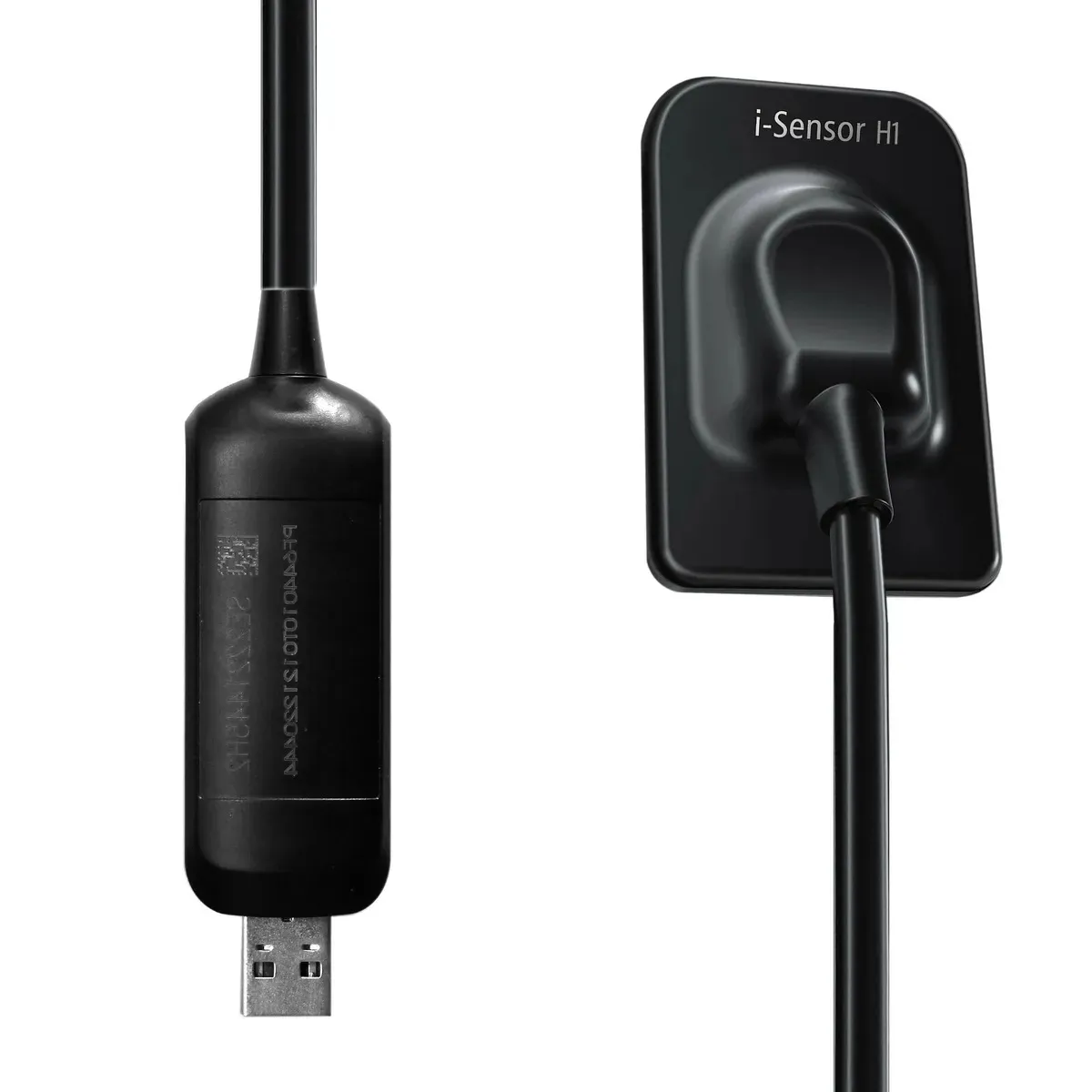

i-Sensor H1, Dental X-Ray Sensor

Introducing the i-Sensor H1, the epitome of innovation in dental imaging. Specifically tailored for dentists who prioritize efficiency, precision, and patient comfort.

Key Features

1. Rapid Imaging: Achieve a complete digital imaging process in just 3 seconds, ensuring timely diagnosis and treatment.

2. AED Exposure Control: Harness the benefits of stable and reliable Automatic Exposure Detection technology.

3. Direct-Deposit Cesium Iodide (CsI) Technology: Enhanced image quality through the adoption of direct-deposit Cesium Iodide (CsI) technology. This ensures reduced signal crosstalk and a more focused light output.

4. Adjustable Exposure Time: The sensor boasts a wide adjustment range for exposure time, adapting to varied clinical needs.

5. Low Dose Imaging: Prioritizing patient health, the i-Sensor H1 is capable of HD image acquisition with a minimal radiation dose.

Design & Comfort

• Ergonomic Design: Features ergonomically optimized cut corners which offer heightened patient occlusal comfort.

• Ultra-Thin Sensor: At a mere 4.5mm, it stands as one of the thinnest sensors, ensuring ease of placement within the patient's oral cavity.

Efficiency & Reliability

• Immediate Results: Say goodbye to the redundant procedures associated with traditional film. With the i-Sensor H1, images are readily available post-photographing, ensuring quick inspection results.

Applications: Ideal for all dental X-Ray procedures where clarity, speed, and patient comfort are paramount.

Primary Technical Parameters

• Power Adapter Input: 5V/USB interface
• Effective Area: 20*30mm(H1)
• Pixel Matrix Size: 1000*1500(H1)
• Pixel Size: 20μm
• Effective Resolution: > 8lp/mm
• Dimensions: 38.5254.5mm(H1)
• Weight: 118g(H1)

System Requirements

• Operating System: Windows® 7 or above
• Processor: Intel® Core 2
• Memory: 2 GB or above
• Hard Disk: 320 GB or above
• USB Ports: 4 high-speed USB 2.0 ports
• Graphics Card: Nvidia chip graphics card or ATI discrete graphics card
• USB Chip: Intel or NEC®/RENESAS®
• Display Resolution: 1280 x 1024

Dive into the future of dental imaging with the i-Sensor H1 – thinner, clearer, smarter.
