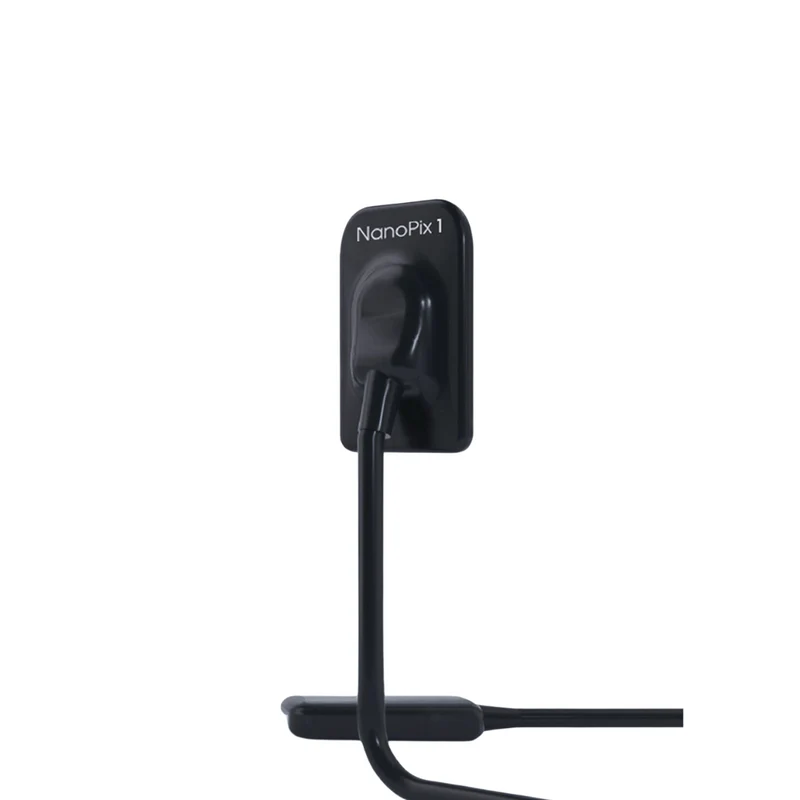

NANOPIX1 Intraoral X-Ray Sensor, High Resolution, Digital Imaging, Size 1

Clinical Overview

The NANOPIX 1 is an ultra-thin (4.4 mm), high-resolution digital intraoral sensor using APS CMOS technology paired with direct-deposition CsI scintillator. It delivers rapid, reliable imaging in under 3–6 seconds, automatically triggered by the X‑ray generator, making it a cost-effective and efficient alternative to film and phosphor plates.

Key Benefits

• Ultra-thin, ergonomic design (4.4 mm) with cupped cable connection for patient comfort and optimal finger placement.
• Rapid image acquisition: 3 seconds to process high-resolution radiographs—20 lp/mm true resolution.
• Long-term durability: over 50,000 exposures and 70,000+ bending cycles without image degradation.
• AED (Automatic Exposure Detection): no buttons—automated capture with most DC/AC X‑ray units.
• High-end build: 16-bit A/D conversion, CMOS sensor, CsI scintillator, and IP68 waterproof/dustproof rating.
• Cost-effective imaging: roughly 1/10th the per-image cost compared to analog film.

Kit Contents

• 1 × Nanopix 1 sensor, size 1 (25.4×36.8×4.4 mm)
• USB 2.0 cable (>2 m length)
• USB CCD base and software CD or download link
• Quick-start guide

Imaging Performance

• Image acquisition: 3 seconds to complete digital capture and processing.
• Durability: Maintains image quality for 50,000+ uses and 70,000+ cable bends.

Indications

• Periapical, bitewing, occlusal, and endodontic imaging
• Diagnostic assessment: caries detection, periodontal evaluation, periapical pathologies
• Procedural guidance for endodontics, implants, and surgical assessments

Instructions for Use

1. Install sensor software on Windows (7/8/10) with USB 2.0 port.
2. Position sensor in patient’s mouth and secure with barrier sleeve.
3. Connect to PC and activate X‑ray exposure; image auto-captures via AED.
4. Process and view images — use software tools for measurement, annotation, and export.
5. Clean with disinfectant after each session; sleeves are single-use only.

Summary

The NANOPIX 1 combines ergonomic design, fast imaging, and durable hardware with reliable high-definition output. It offers seamless digital workflows and cost-effective performance—ideal for modern dental diagnostics and clinical efficiency.
