Clinical Overview
The COXO DB‑686 Super Dual is an all-in-one cordless LED dental device that combines high-power resin curing with tooth whitening acceleration. Boasting a dental-grade spectrum (420–480 nm) and light output over 1 200 mW/cm², it supports efficient polymerization, caries detection, and accelerated bleaching with ergonomic, LCD-guided control and rechargeable Li-ion power.
Key Benefits
- Dual functionality: One device for curing resin restorations and accelerating chairside whitening procedures.
- Adjustable intensity & modes: Three intensity levels (low/medium/high) and modes (steady, fading, flashing) for versatile clinical protocols.
- Wide-spectrum curing: 420–480 nm output, achieving ~1,200 mW/cm² and curing 3 mm in 5 seconds.
- Rapid cycle times: Digital timer adjustable from 5 to 30 seconds for efficient restorative or whitening applications.
- Cordless convenience: High-capacity Li-ion battery with power-check display and dock charger.
- Built-in LED meter: Ensures consistent intensity and quality control.
Kit Contents

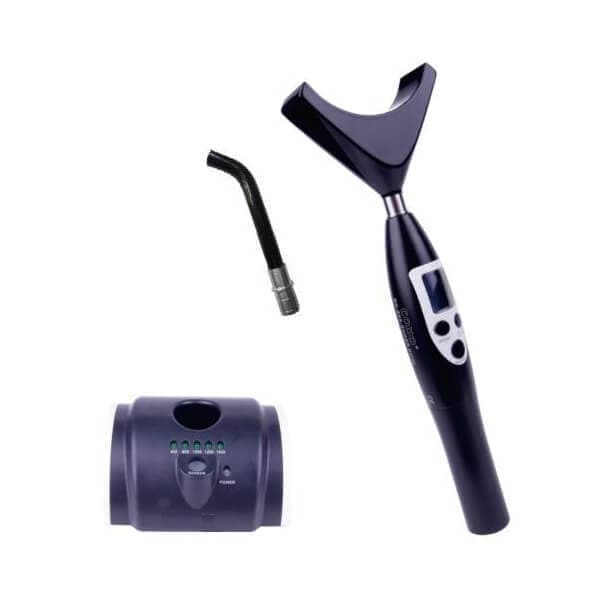

- 1 × DB‑686 Super Dual wireless LED light handpiece
- 1 × Charging dock (100–240 V AC)
- Light guide tip(s)
- Protective eye shield
- User manual
Technical Specifications
- Wavelength: 420–480 nm (dental spectrum)
- Output: ≥ 1,200 mW/cm² at high intensity
- Intensity levels: Low / Medium / High
- Modes: Constant, fade-in, blinking patterns
- Timer settings: 5–30 s adjustable via LCD display
- Battery: High-capacity Li-ion with power level indicator
- Charging: AC 100–240 V dock; automatic sleep and low-battery alerts
- Depth/range: 3 mm depth in 5 s; ~10 mm light coverage
- Weight & size: Slim, lightweight, cordless design
Indications
- Curing composites, adhesives, sealants
- Tooth whitening/photo-accelerated bleaching
- Caries detection inspection
- Orthodontic bonding and light-cure procedures
Instructions for Use
- Place charged DB‑686 in dock; ensure full battery level displayed.
- Select desired intensity (low/medium/high) and mode (steady/fade/blink) via buttons.
- Set treatment timer (5–30 s) on LCD interface.
- Position guide tip ~1–2 mm from tooth surface; activate light.
- During whitening, apply gel then irradiate as per gel manufacturer protocol.
- After curing or bleaching, allow device to auto-sleep or manually switch off.
- Dock device post-use for automatic charging and standby.
Summary
The COXO DB‑686 Super Dual is a versatile, ergonomically designed cordless LED light integrating resin curing, whitening acceleration, and diagnostic capabilities. With adjustable output, onboard metering, and LCD control, it supports reliable and efficient clinical workflows.
