Light Curing Unit LED.B

Clinical Overview

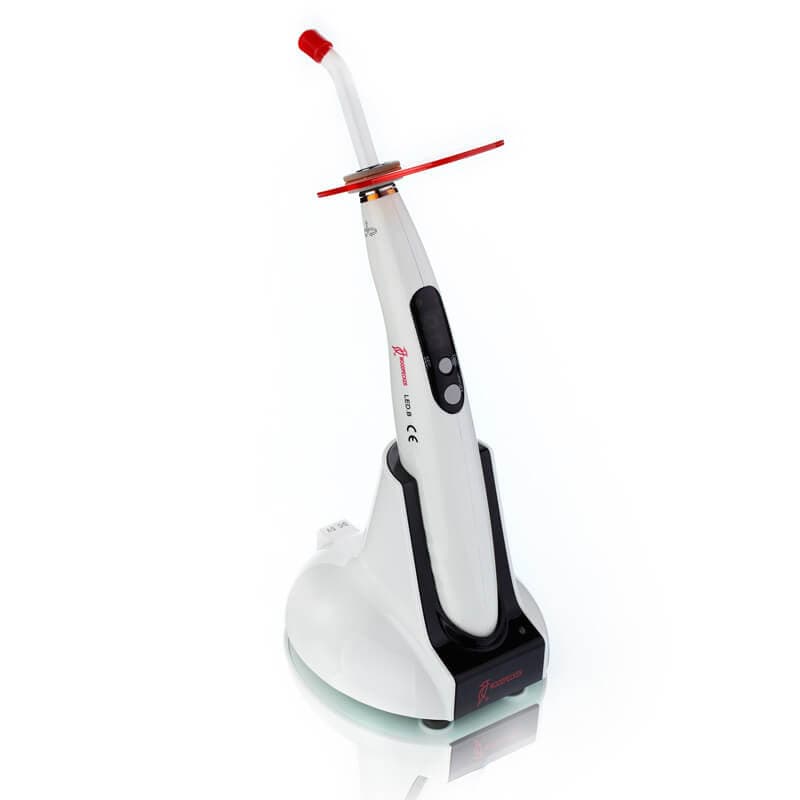

The Woodpecker LED B is a high-performance, cordless LED curing light designed for restorative and whitening procedures. Featuring a wide-spectrum LED (385–515 nm) and constant high intensity, it supports rapid polymerization and versatile chairside use without cables.

Key Benefits

• Wide-spectrum LED (385–515 nm): cures all light-activated dental materials including composites, sealants, adhesives, and whitening gels.
• High, consistent output: Delivers 1,000–1,700 mW/cm²; maintains ≥1,500 mW/cm² in 5-second mode for ≥4 mm depth of cure.
• Four preset curing times: 5, 10, 15, and 20 s with audible “Di” feedback, simplifying clinical protocols.
• Cordless convenience: Uses a rechargeable 2000‑2200 mAh ICR18650 Li-ion battery; supports >500 cycles (10 s each) per charge and ~70 days standby.
• Autoclavable optical fiber: Sterilizable up to 135 °C and 0.22 MPa, supporting infection control protocols.
• Ergonomic design: Lightweight (~145 g), sealed handpiece with 360° swivel head and auto sleep after 3 minutes to conserve power.

Kit Contents

• 1 × LED B cordless curing light (with optical fiber)
• 1 × Charging pedestal with AC adapter (100–240 V, 50/60 Hz)
• Red protective hood
• User manual

Technical Specifications

• Wavelength: 385–515 nm blue LED
• Output intensity: 1,000–1,700 mW/cm² (≤ 1,500 mW/cm² in 5 s mode)
• Battery: 3.7 V ICR18650 Li-ion, 2,000–2,200 mAh; supports >500 cycles and 70-day standby
• Presets: 5/10/15/20 s with countdown tone
• Depth of cure: ≥4 mm in 10 s mode
• Dimensions & weight: Ø 31×34 mm, length 260 mm; ~145 g
• Power consumption: ≤ 8 W; charging time 4–6 h

Working & Setting Times

• Preset cycles: 5 s (high power ~1,500–1,700 mW/cm²), 10–20 s (1000–1,200 mW/cm²)
• Auto sleep: After ~3 min idle, conserving battery

Indications

• Curing of light-activated composites, bonding agents, sealants
• Whitening gel activation
• Polymerization through ceramic and resin cements

Instructions for Use

1. Charge fully before first use (≈4–6 h); battery can be recharged anytime.
2. Attach and optionally sterilize the optical fiber; fitted with red shield.
3. Press time button to select curing duration (5/10/15/20 s).
4. Position tip ≤1 mm from restorative surface.
5. Press activation; listen for “Di” tone and hold until countdown completes.
6. Allow auto sleep or manually place on stand post-use.

Summary

Woodpecker LED B offers high-output, cordless curing with ergonomic design and sterilizable fiber, ideal for quick and reliable composite and whitening workflows. Its presets, consistent intensity, and long battery life support efficient and precise clinical performance.
