Clinical Overview

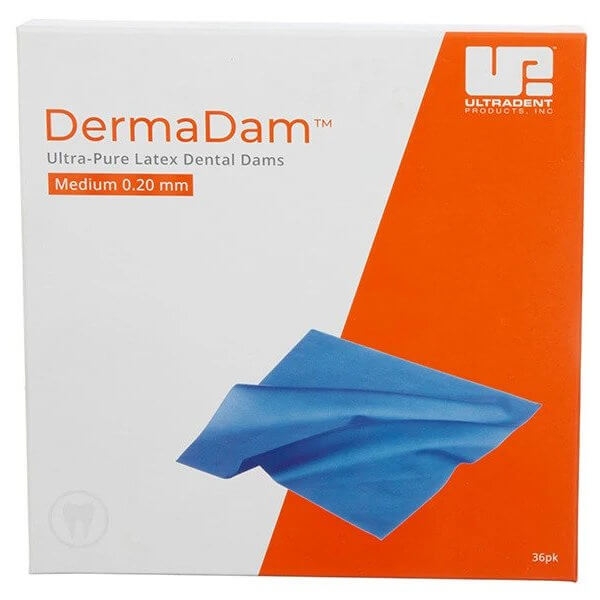

DermaDam™ Medium is a non‑powdered, natural latex rubber dental dam, offered in a 36‑sheet refill pack (6″ × 6″; 15 × 15 cm) with a uniform 0.20 mm thickness. Manufactured by Ultradent for professional restorative isolation, it combines structural strength with superior biocompatibility, minimizing latex protein exposure. (Item 311 in Ultradent’s 2022 Access & Isolation lineup.)
Key Benefits
- Optimal thickness for most restorative cases: At 0.20 mm, this medium-density dam resists tearing yet stretches over tight contacts without shredding or overstretching. Suitable for both anterior and posterior teeth.
- Low latex allergy risk: Powder‑free formulation reduces surface protein content, thereby lowering dermal and hypersensitivity reactions while maintaining natural elasticity.
- High tensile strength: Provides reliable tear-resistance and durability during clamp placement and multiple attempts at inversion—even in challenging isolation setups.
- Consistent sheet size: 15 × 15 cm dimensions support quadrants or segmented isolation without excess trimming or waste.
- Pack size saves time: Refill box contains 36 single-use sheets, pre-cut and ready to use in high-volume practices.
- Tactile visibility: Available in standard clinical colors that enhance contrast between teeth, soft tissues, and restorative preparations. (Select your local-color preference.)
Kit Contents
- 36 × DermaDam™ Medium latex rubber dam sheets (15 × 15 cm, 0.20 mm)
- Product brochure with preservative and allergy information
- Labelled code “311” for easy reordering in Ultradent systems
Indications
- Isolation of operative field for direct and indirect restorative procedures
- Water‑ and saliva‑control during adhesive bonding, endodontics, or bleaching
- Protection of soft tissues from etchants, irrigants, or debris
- Minimizes bacterial contamination and enhances visual contrast under comment magnification
Instructions for Use
- Select a pre‑cut DermaDam sheet and orient so the dull side faces the occlusal surface.
- Punch holes according to the teeth to be isolated (usually 3–5 mm apart), reserving the largest perforation for the clamped tooth (often 1st molar).
- Seat the relevant clamp onto the abutment tooth (preferably outside the mouth), then stretch the dam over the clamp and adjacent teeth using floss to pass under contacts.
- Use an inversion tool (plasty or explorer) and air‐water spray or floss ligatures to gently tuck dam edges into the gingival sulcus for a seal.
- Frame the dam using a rigid (plastic or metal) dam frame to maintain tension, keeping the sheet taut yet comfortable.
- At procedure end, release the dam by cutting interseptal sections, then remove clamp and dam carefully.
- Dispose of used sheet and sanitize retainer and frame per infection-control protocol.
Summary
The DermaDam™ Medium refill (Code 311) offers an excellent balance of flexibility, strength and ease of use—ideal for both routine and complex restorations. Its powder‑free latex composition enhances patient safety, while consistent sheet size and pack quantity support efficient workflow. For clinicians seeking reliable isolation with minimal allergenic potential, DermaDam™ Medium delivers hygienic, high‑performance control in every case.
Manufacturer: Ultradent Products, Inc., South Jordan, Utah, USA.
Regulatory: Powder‑free latex, meets international medical device requirements (CE, FDA).
Contraindications: Not suitable for patients with diagnosed latex allergy—consider DermaDam™ Synthetic equivalents.
Storage & Handling: Store at room temperature; avoid prolonged UV exposure; use undamaged sheets only. Single‑patient use only.
