Deluxe Dental Microscope, Apochromatic Optical 20x

Clinical Overview

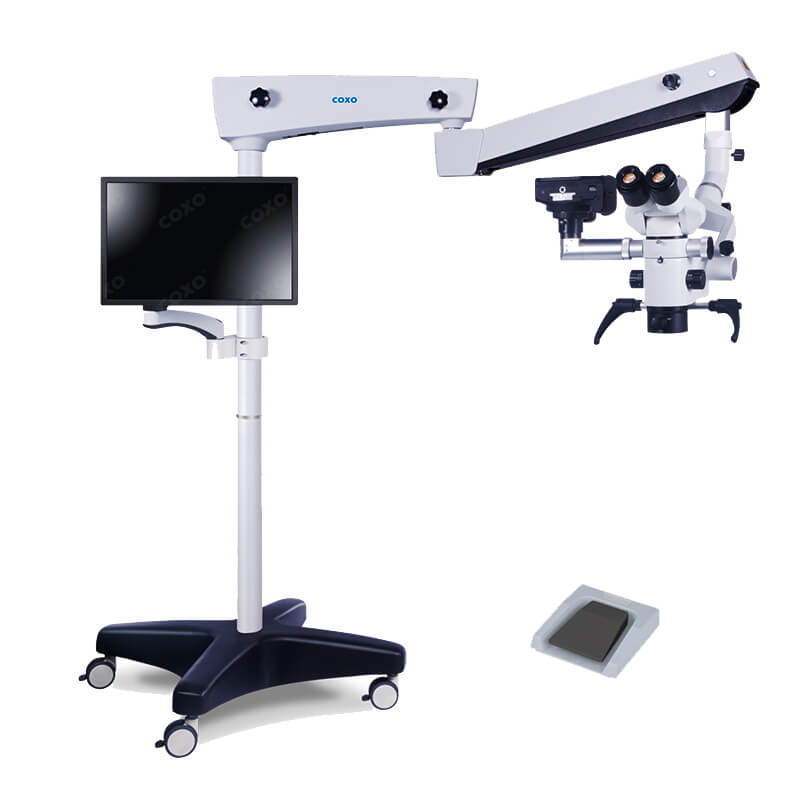

The C‑CLEAR 2 is a top-tier, apochromatic optical dental microscope engineered by COXO for enhanced endodontic and microsurgical procedures. With precision multi-layer coated optics, 5-step magnification up to 20×, and high-intensity adjustable LED illumination, it enables superior visualization of fine intraoral structures with accurate color fidelity.

Key Benefits

• Apochromatic optics: exceptional chromatic correction ensures real tissue colors and sharp clarity.
• Five-level gear zoom: 3.2×, 5×, 8×, 12.8×, 20× magnification for flexible working distances and detailed inspection.
• High eye-point eyepieces: 12.5× wide-angle lenses with +7/−7 D diopter adjustment suit eyeglass wearers comfortably.
• Adjustable binocular tube: 0–180° tilt with 170 mm working distance, promoting ergonomic comfort.
• LED illumination: 30 000–65 000 lux brightness, CRI > 90%, with optional filters to control composite curing exposure.
• Robust support system: German gas-spring arm and silent casters ensure stable positioning and quiet operation.

Kit Contents

• 1 × C‑CLEAR 2 microscope head
• 12.5× wide-angle eyepieces with diopters
• 5-step gear zoom module
• Fixed-focus objective lens (250 mm) – optional 200–300 mm zoom lens
• LED illumination with adjustable brightness and filter options
• Double-handle 0–180° binocular tube
• Gas-spring articulated arm and mobile base with mute casters
• Optional camera integration (Sony/Canon external or built-in 4K)

Technical Specifications

• Optical system: fully apochromatic with multi-layer nano coatings.
• Magnification: 3.2× / 5× / 8× / 12.8× / 20× via mechanical zoom.
• Eyepiece: 12.5× WF, +7/−7 D diopter, high eye-point.
• Working distance: 200–415 mm (fixed 250 mm or optional zoom objective).
• Illumination: LED, 30 000–65 000 lux, CRI > 90%, multi-filter.
• Ergonomics: angled binocular tube, gas-spring arm, and mute casters.
• Camera options: supports external Sony/Canon cameras or built-in 4K system.

Indications

• Microsurgical endodontics and retreatments
• Precision operative procedures (e.g. fine caries removal, SLA)
• Implantology, periodontics, and restorative dentistry requiring high magnification
• Clinical training and documentation with optional camera capture

Instructions for Use

1. Mount microscope on stable base or ceiling/floor stand; lock arm pivots.
2. Adjust binocular tube angle and interpupillary distance to align with user.
3. Focus at working distance using fixed or zoom objective.
4. Select desired magnification and refine focus.
5. Adjust LED brightness; engage filters when polymerizing composites.
6. If attached, align camera output and adjust framing.

Summary

The C‑CLEAR 2 Deluxe microscope offers apochromatic clarity, versatile magnification, ergonomic handling, and clinical-grade illumination—all in a robust support system. It is ideally suited for high-precision dental diagnostics, microsurgery, and documentation workflows.
