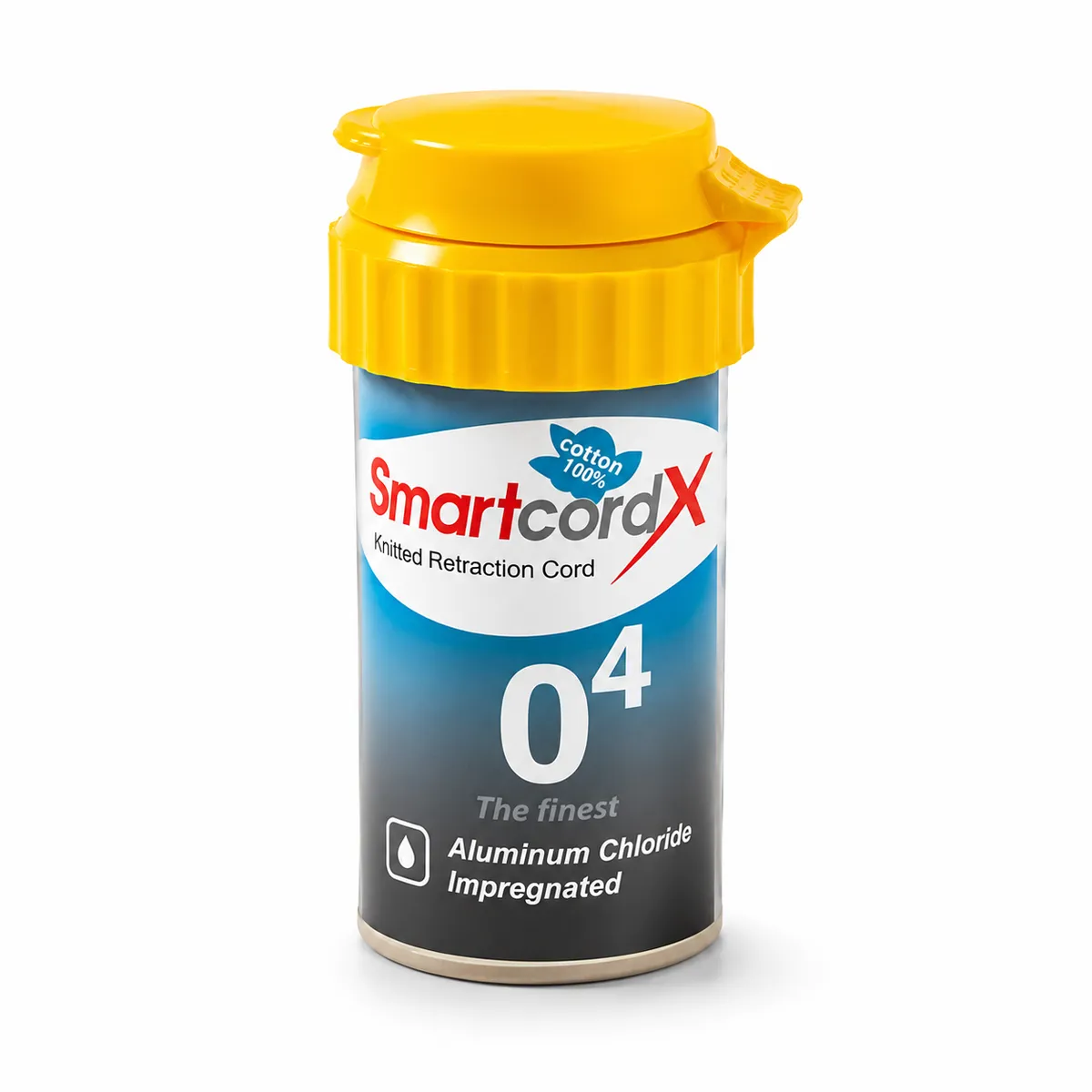

SmartCord 04-X, مشبع بـ ACH, خيط الإبعاد, حجم #0000

Clinical Overview

SmartCord 04‑X is a knitted gingival retraction cord constructed from 100% cotton and impregnated with Aluminum Chloride Hexahydrate (ACH) at approximately 1.2 ± 0.8 mg per inch of cord. It delivers gentle yet effective soft‑tissue displacement and hemostasis, without the need for epinephrine or vasoconstrictors.

Key Benefits

• Ultra‑fine size (#000): Minimally invasive cord suited to very narrow sulcus and delicate tissue zones.

• ACH impregnation: Aluminum chloride hemostatic effect precipitates proteins to reduce bleeding and minimize sulcus collapse post-removal.

• No epinephrine: Safer option—avoids cardiovascular side effects and tissue irritation.

• Knitted cotton structure: Absorbs and expands with fluid or topical agent, enabling secure tissue retraction.

• Hygienic spool features: BobbinInside™ design, EasyCut™ zirconia blade, SmartRuler™, and ClearWindow™ improve usability, measurement and cleanliness.

• No fluorescent dye: Hydrophilic dye devoid of optical brighteners ensures safety and avoids UV artifacts.

Kit Contents

• 1 × Spool (~254 cm / 100 inches) of SmartCord 03‑X Size #0000 cord

• Spool includes integrated EasyCut™ zirconia cutter blade, SmartRuler™, ClearWindow™, and BobbinInside™ spool system

Indications

• Gingival displacement and moisture control for crown, bridge, veneer, and Class II/V restorative preparations

• Optimal for ultra-fine sulcus management in delicate anterior zones or narrow tissue margins

• Impression procedures: both digital and conventional techniques

• Particularly suitable for patients contraindicated for epinephrine use (e.g., cardiovascular concerns)

Instructions for Use

1. Clean and assess gingival sulcus anatomy.

2. Use integrated EasyCut™ blade to cut required cord length guided by SmartRuler™ scale.

3. If desired, moisten cord with hemostatic agent (optional).

4. Gently pack cord into sulcus using cord‑packing instrument—avoid excessive pressure.

5. Allow ~1–2 minutes for tissue retraction and hemostasis.

6. Remove cord carefully and rinse thoroughly before impression or cementation.

Summary

SmartCord 03‑X (Code EDSX‑A) combines ultra‑fine cord diameter with clinically effective aluminum chloride hemostasis for atraumatic gingival displacement. Its clean, epoxy‑free construction and spool‑integrated tools support hygienic, precise and safe use—especially in narrow sulcus or medically sensitive cases.

Manufacturer: EastDent (SmartCord X series).
Regulatory: No epinephrine; dye free from fluorescent whitening agents, designed for professional dental use.
Contraindications: Not recommended for patients allergic to cotton or aluminum chloride.
Expiry: Refer to spool label for batch-specific expiration.
