Clinical Overview

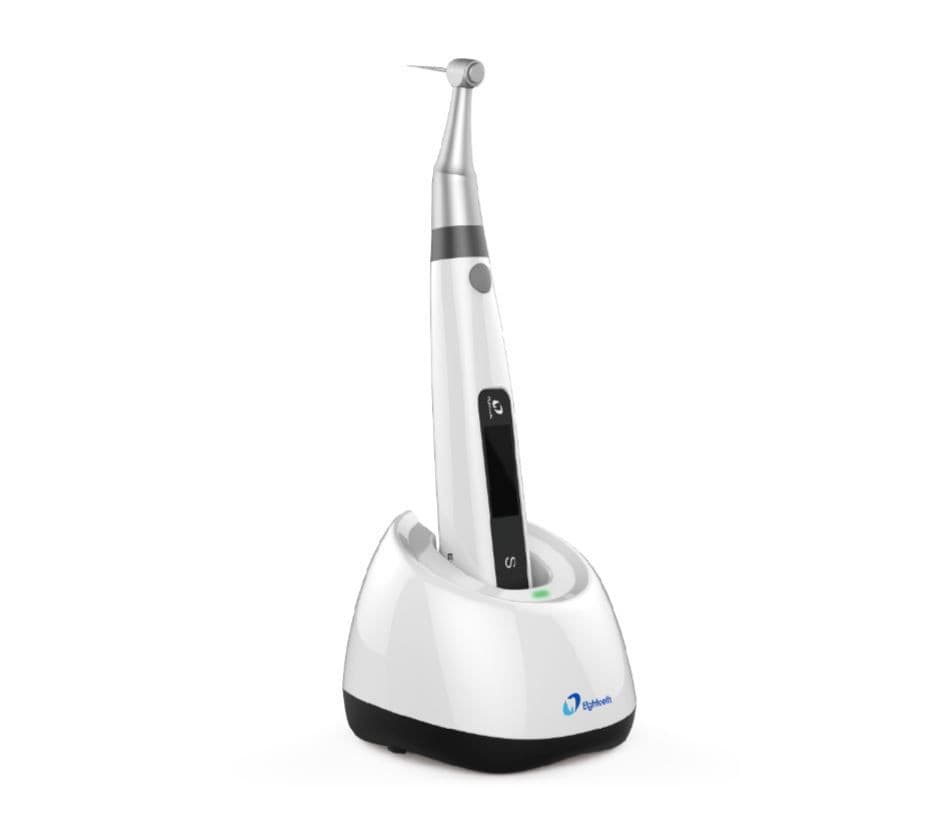

The E‑Connect S by Eighteeth is a premium, cordless endodontic motor featuring a built-in multi-frequency apex locator. It offers continuous and reciprocating rotation with adjustable angles, speed, and torque, plus Smart ATC features like auto-start/stop, apical slow-down/reverse, and torque control—streamlining canal shaping while monitoring working length in a single streamlined unit.
Key Benefits
- Cordless brushless motor with long-life lithium battery (1500 mAh)—quiet, lightweight, and portable.
- Versatile operation modes: continuous rotation (120–1000 rpm), reciprocation (30°–370° adjustable), CW/CCW directional control.
- Adaptive Torque Control (ATC): motor shifts to reciprocation if torque limit is reached, resuming rotation once safe—minimizes file separation risk.
- Integrated apex locator: precise working-length monitoring with auto start/stop, apical slow-down and reverse features to protect the apical area.
- Customizable presets: 11 memory slots (M0–M10) for rotary and reciprocating file systems ﹘ compatible with most major brands.
- Ambidextrous OLED display & rotary head: screen and 340° rotatable contra-angle enhance visibility in posterior regions.
Kit Contents
- 1 × Cordless E‑Connect S motor handpiece with contra-angle
- 1 × Charging base or cradle
- Measuring wire, lip hook, file clip
- Power adaptor and cables
- User manual and quick-start guide
Technical Specifications
- Speed range: 120–1000 rpm (continuous), reciprocation 30°–370° adjustable.
- Torque range: 0.5–4.0 N·cm, with ATC function to prevent overload.
- Battery: 1500 mAh Li-ion for prolonged cordless use.
- Memory: 11 programmable file settings (M0–M10).
- Display: High-contrast OLED screen, rotatable for left/right-handed operators.
Indications
- Rotary or reciprocating canal shaping
- Precise working-length verification during instrumentation
- Complex or curved canal anatomy requiring torque safety
- Combined use of endomotor and apex locator in a single session
Instructions for Use
- Charge handpiece fully before first use.
- Program or select the desired file system and motion mode (CW/CCW/REC/ATC).
- Connect measuring wire, lip hook, and file clip for integrated apex function.
- Start instrumentation—motor auto-activates when file enters canal.
- Observe display and alerts: slow-down or reversal at apical limit.
- Proceed with canal shaping; once complete, recharge and maintain per manual.
Summary
The E‑Connect S is an all-in-one endodontic solution featuring a cordless, brushless motor paired with a smart, integrated apex locator. With precision torque control, flexible motion settings, and intuitive feedback, it optimizes efficiency and safety in modern root canal treatments.
