OccluSense, Digital Occlusion Analysis System

Clinical Overview

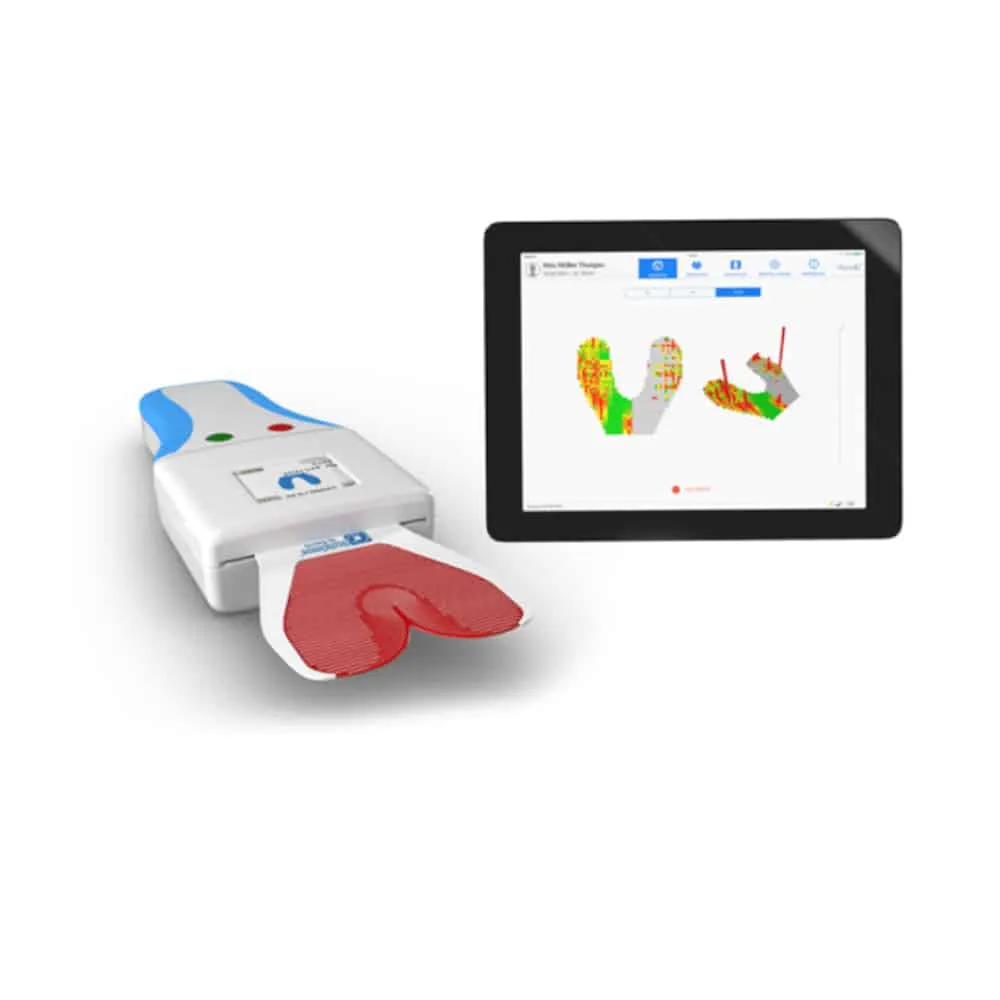

The OccluSense BK 5000 is a handheld, Bluetooth-enabled digital occlusion sensor system. Featuring ultra-thin (60 µm), color-coated pressure sensors, it quantitatively records static and dynamic occlusion across 256 pressure levels and wirelessly transmits data to the iPad app for visualization, analysis, and documentation.

Key Benefits

• Objective pressure mapping: Records up to 256 levels of occlusal force, improving precision over traditional articulating paper.
• Thin, flexible sensors: 60 µm single-use foils adapt easily to all occlusal surfaces and highlight contacts during chewing.
• Wireless data transfer: Handpiece charges inductively; connects via Wi‑Fi/Bluetooth for ~4 h use on a full charge.
• App-based analytics: iPad app displays pressure heat maps and allows video export, timestamping, and integration into patient records.
• Improved patient communication: Graphical results assist with patient education and informed consent.
• Complete professional kit: Includes reusable handpiece, inductive charger, 25 sensors, test sensor, rechargeable batteries, screwdriver, and travel case.

Kit Contents

• 1 × OccluSense BK 5000 Handheld Device
• 1 × Inductive Charger
• 1 × Test Sensor
• 25 × OccluSense® Pressure Sensors (Ref. BK 5025)
• 3 × Rechargeable AAA Batteries
• 1 × Torx Screwdriver (IP6)
• 1 × User Manual and Quick-Start Guide
• 1 × Protective Storage Case

Operational Parameters

• Battery life: Up to 4 hours per full charge.
• Sensor thickness: 60 µm—minimizes interference.
• Pressure levels: Captures 256 discrete pressure gradations.

Indications

• Occlusal adjustment and equilibration
• Post-restorative bite validation (crowns, bridges, implants)
• TMJ/muscle tension assessment
• Prosthesis bite verification
• Occlusal monitoring in bruxism and orthodontics

Instructions for Use

1. Open iPad app and connect handheld via Wi‑Fi/Bluetooth.
2. Insert a sensor foil and ask patient to perform static or dynamic occlusion.
3. Sensor records pressure; data automatically transfers to the app.
4. Review pressure map; adjust occlusion as needed.
5. Repeat and document changes via exported PDF or video.
6. Replace sensor for each measurement to ensure hygiene.
7. Recharge device inductively between uses.

Summary

The Bausch OccluSense BK 5000 system advances occlusal assessment by delivering precise digital pressure mapping in a user-friendly, wireless format. It boosts diagnostic accuracy, supports patient communication, and enhances integration into digital workflows—ideal for modern restorative and occlusal therapy.
