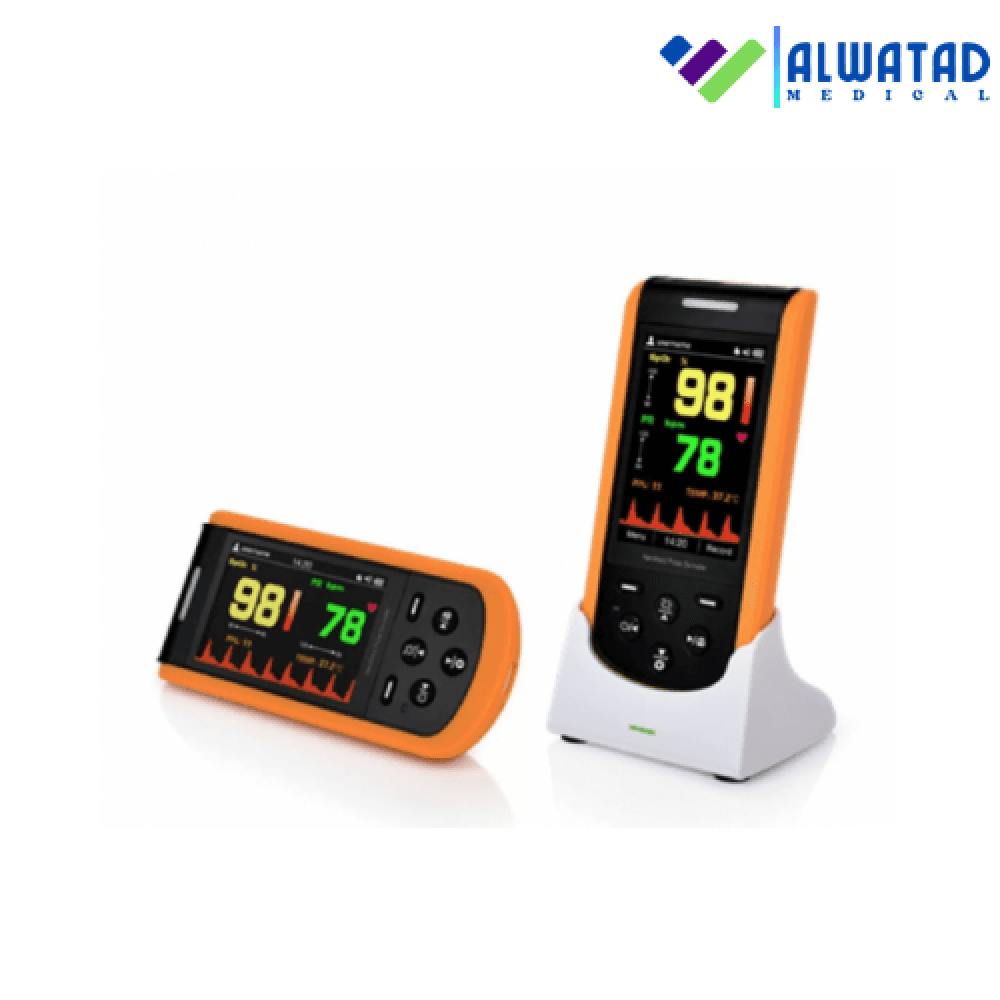

Handheld Pediatric Pulse Oximeter with Charger, SP-20

Overview

The Creative Medical SP-20 is a handheld pediatric pulse oximeter supplied with a charger. It measures arterial oxygen saturation (SpO2) and pulse rate on a color LCD and is designed for infants and small children using a dedicated wrap sensor for patients 2–11.3 kg.

Key features

• Continuous monitoring of SpO2 and pulse rate.
• Pediatric wrap sensor for 2–11.3 kg; can be secured to the hand or foot as appropriate.
• Color LCD with clear readouts and an option to view readings horizontally.
• Rechargeable internal battery; charging via Micro USB or charging dock; up to 18 hours of operation per full charge (as specified).
• Configurable visual and audible alarms for high/low limits.
• Data storage up to 580 hours; supports up to 16 user profiles.
• Compatible with multiple sensor types (finger, ear, wrap); select sensor by patient age and weight.

Applications

Suitable for hospitals, clinics, pediatric departments, healthcare centers, and supervised home care where monitoring of oxygen saturation and pulse rate is required. Readings should be interpreted in clinical context and are not a sole basis for diagnosis.

Specifications

• Brand: Creative Medical
• Model: SP-20
• Measurement parameters: SpO2 and pulse rate
• Patient category: Infants and children
• Included sensor: Pediatric wrap sensor
• Applicable patient weight (sensor): 2–11.3 kg
• Display: Color LCD
• Battery: Internal, rechargeable
• Charging method: Micro USB or charging dock
• Operating time: Up to 18 hours per full charge
• Data storage: Up to 580 hours
• Users: Up to 16 profiles
• Alarms: Visual and audible
• Dimensions: 15.8 × 7.3 × 2.5 cm
• Weight: 230 g

Important notice

This device is intended for monitoring only and does not replace medical evaluation. If oxygen saturation is low or clinical signs such as respiratory distress or cyanosis are present, seek appropriate medical care.
