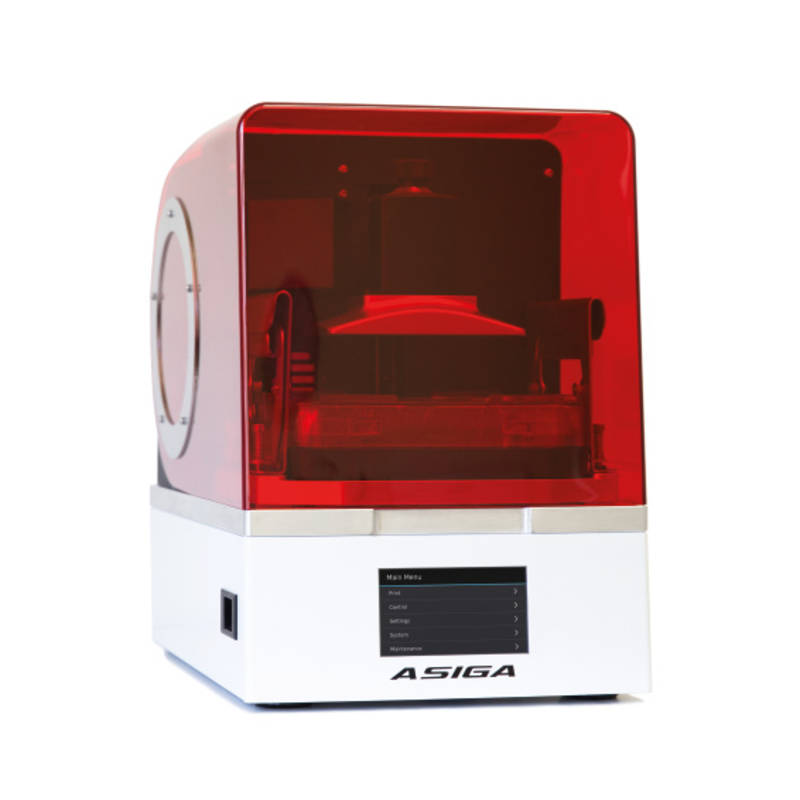

Asiga MAX, Dental 3D Printer

Clinical Overview

The Asiga MAX is a compact, high‑precision dental DLP 3D printer featuring a 385 nm UV LED, equipped with Smart Positioning System (SPS™) and internal radiometer for unmatched layer‐by‐layer accuracy. Its open material system supports over 500 third‑party resins, making it ideal for a broad range of dental applications—from models and splints to surgical guides, crown & bridge, dentures, and custom trays.

Key Benefits

• 62 µm HD precision—consistently delivers fine detail with high dimensional accuracy
• Smart SPS™ layer control—ensures every layer is positioned and cured accurately, reducing print variability
• Open materials platform—compatible with 500+ validated resins for production versatility and cost efficiency
• Chamber heating—maintains optimal resin viscosity for faster and more reliable curing
• Water‑clear printing via Transparent Mode™—achieves high precision with clear resins
• Compact footprint—ideal for in‑office clinics and dental labs without sacrificing performance

Key Specifications

• Build volume: 119 × 67 × 75 mm
• Pixel size: 62 µm (4K mode available)
• Layer thickness: from 1 µm
• UV LED: 385 nm (also available 405 nm model)
• Connectivity: Wi‑Fi, Ethernet, USB
• Weight: ~19 kg; Dimensions: 260 × 385 × 370 mm

Indications & Applications

• Dental and orthodontic models
• Surgical guides and splints
• Crown & bridge prototypes and temporaries
• Custom trays and occlusal splints
• Partial denture frameworks and denture bases

Workflow & Software

Powered by Asiga Composer—cross-platform, license-free software offering automatic part nesting, support generation, and real-time printer control. SPS™ and radiometer facilitate single-point calibration and fast material switching (~30 sec), reducing downtime.

User Experience & Support

• Touchscreen interface guides users through builds with intuitive prompts and infographics
• High reliability and low failure rates praised by clinics and labs
• Unlimited lifetime support and global service network included

Summary

The Asiga MAX is a lab‑grade, compact dental 3D printer that combines precision, versatility, and workflow efficiency. With 62 µm resolution, open materials compatibility, chamber heating, and intuitive software, it's built to streamline production of high‑quality dental restorations, appliances, and guides with confidence.
